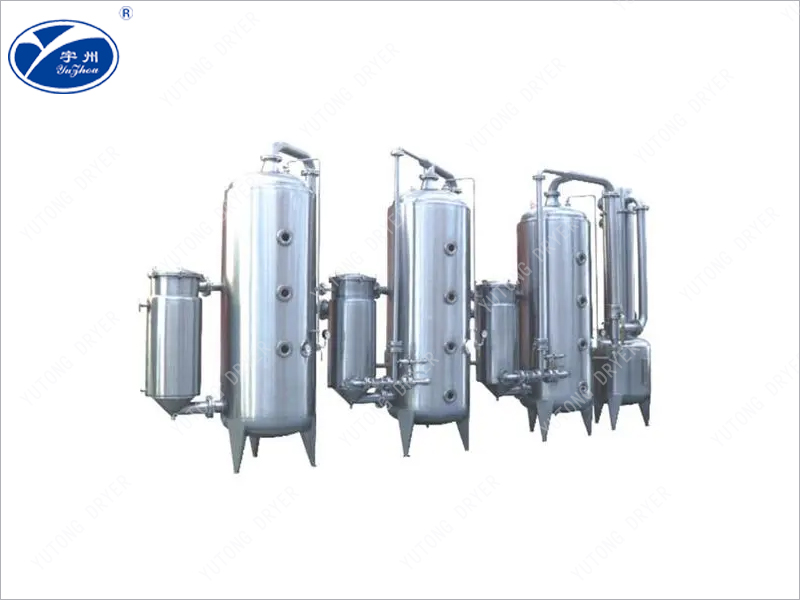

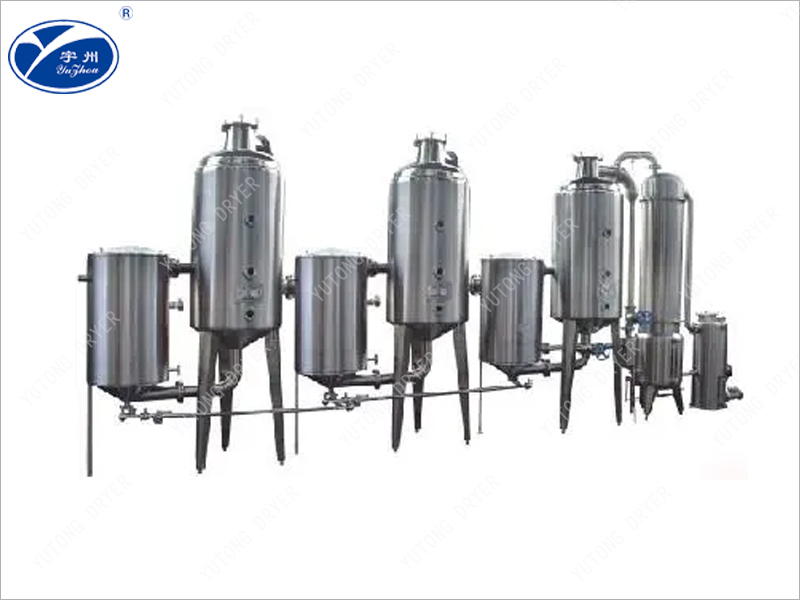

This concentrator is suitable for concentrating solutions of traditional Chinese medicine, western medicine, glucose, starch, monosodium glutamate, dairy products, chemical industry, etc., especially for low-temperature vacuum concentration of thermosensitive materials. Users can use the series of concentrators in the technical specifications according to their actual situation.
1. The concentrator adopts external heating type natural circulation form and negative pressure evaporation mode, which has fast evaporation speed and significant concentration ratio, up to 1.2-1.3.
2, the concentrator adopts three-effect simultaneous evaporation, the secondary steam gets repeated action, which not only saves the investment of the boiler, but also saves energy consumption, and the energy consumption is reduced by 70% compared with the single-effect concentrator, less than one year the user can recover the entire investment of the concentration from the energy saving fee.
3, multi-functional operation features:
(1) can recover the alcohol concentration of about 80%.
(2) One effect, two effects, three effects can be repeated and pot to collect the paste.
(3) can be intermittent continuous feed.
4, the concentrator and material contact parts are made of stainless steel (OCr18Ni9), in line with GMP standards. Beautiful appearance, heater, evaporator outside the insulation layer, the insulation layer with stainless steel grinding pattern plate, so that the equipment in the workshop layout is more beautiful and luxurious.
