The straight cylinder mushroom type multi-energy extraction tank produced by the factory is a collection of the essence of domestic extraction equipment, a new product developed by scientific research and design, using large and small. On large: boiling buffer space is large, not easy to run material. Water: liquid medicine heat transfer fast, heating time is short, extraction effect is good, automatic cleaning, automatic control operation, etc.
The heating structure can be used for small production test and normal production of boiling after boiling. The central heating drum is heated in the center of the liquid medicine, which effectively uses energy, improves the heating speed, and plays the role of supporting bridge, which is convenient for liquid discharge and not easy to block the network. It can hang the slag with the opening of the slag door, and the slag is more smooth.
It is suitable for extraction of aromatic oil and recovery of organic solvent. It is mainly used for decocting Chinese medicine in water, alcohol leaching, hot reflux leaching, forced circulation leaching and other production processes.
The multifunctional extraction tank consists of a feeding port, a tank body, a slag discharge door, and other components
The filter screen on the slag gate can be replaced with a 20-80 mesh filter screen according to different processes
The tank body is in the shape of a straight tube and a mushroom.

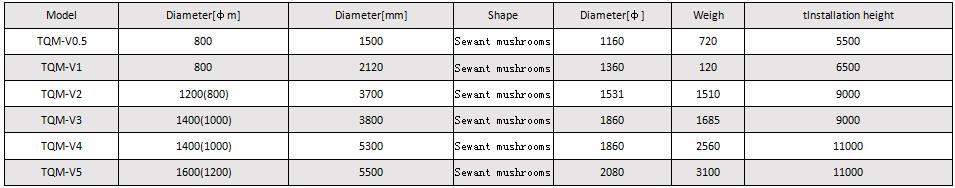

0.3m3、0.5m3、1m3、2m3、3m3、5m3、6m3
Heating steam pressure:≤0.3MPa
Cylinder air pressure:0.7MPa
